how to build the CNC Machine, and to install the Cam software Mach3

The machine we will use will be to create routers from plastic but while before that we will use wood to try to make a circle design with it and below there will be information about the CNC 3040T machine that we will be using and the features and specification will be shown below.

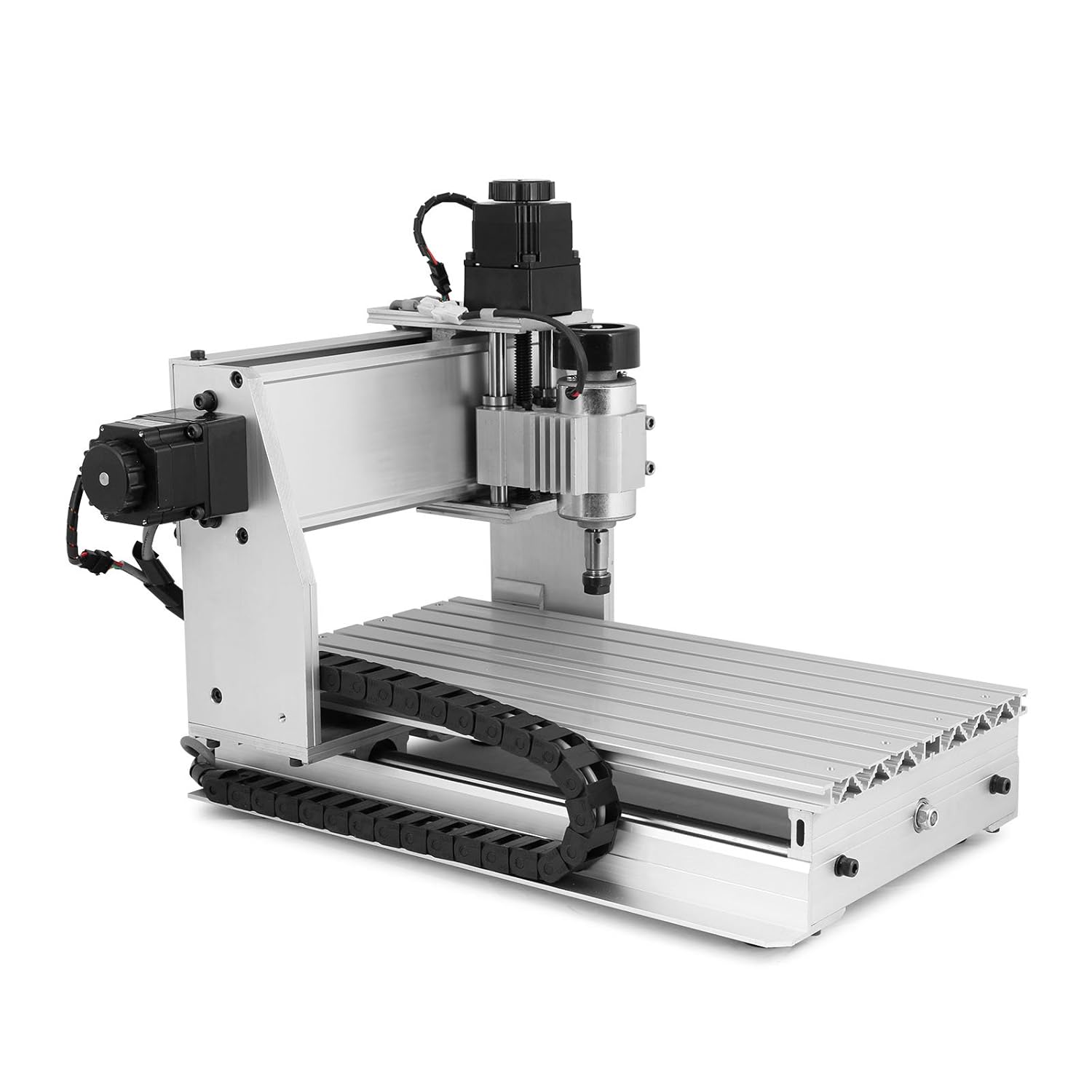

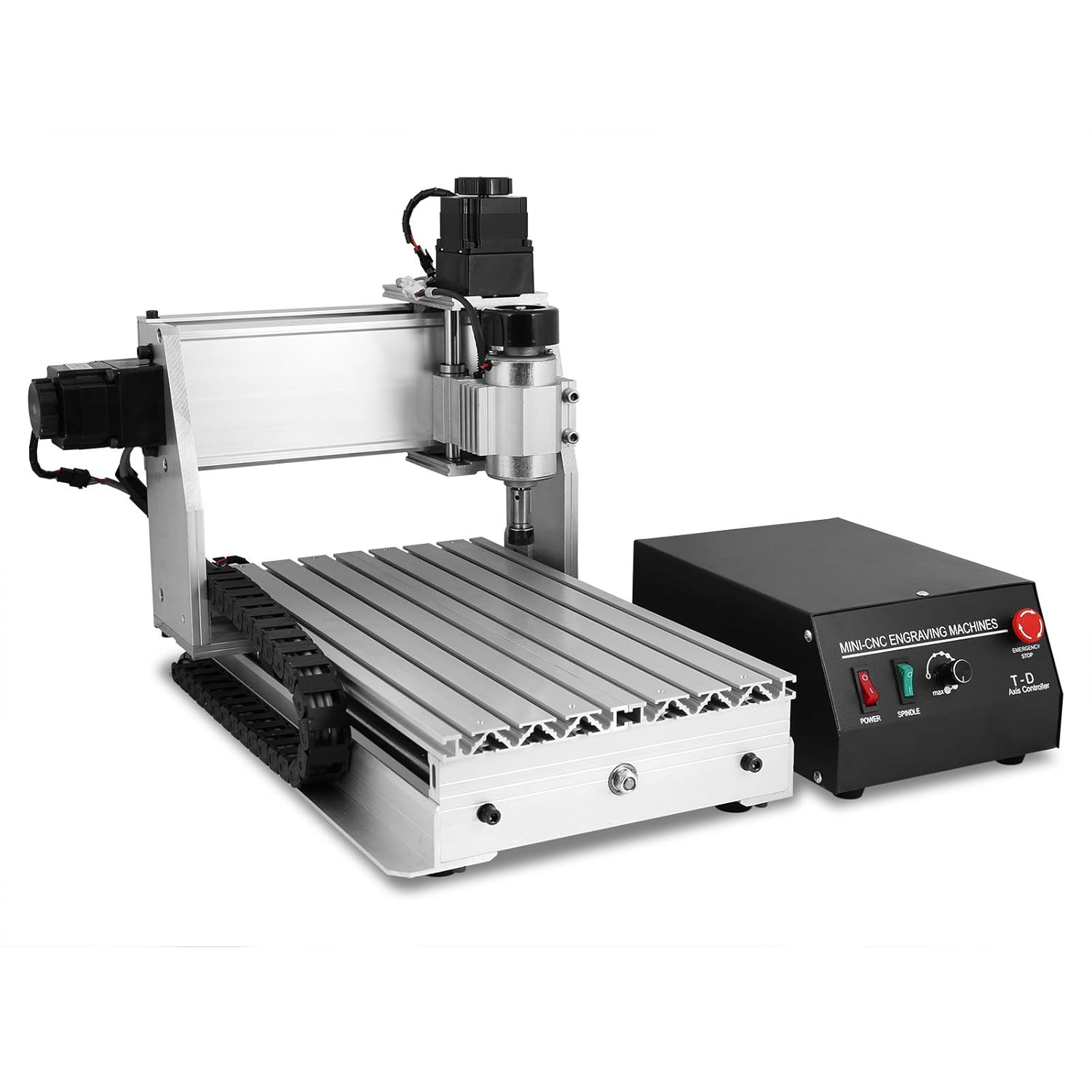

CNC 3040T Router Engraver Engraving Drilling and Milling Machine 3Axis
CNC3040 is suitable for Industry, Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.3040 USB CNC engraver is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making,PCB,Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.

Feature:
Supports DXF files generated by CAD software; PLT / HPGL
Support tool change (need their own research)
Support line cutting (self-study required)
Support for knife function
Support homing function
Support spindle switching control, water, spray control
It supports all the features of custom keyboard shortcuts
Support breakpoint continued carving capabilities
Can control the engraving more precise
Specification:
Max.workpiece dimension:70mm
Work table dimension:320mm*530mm
Frame materials:aluminum alloy 6063 and 6061

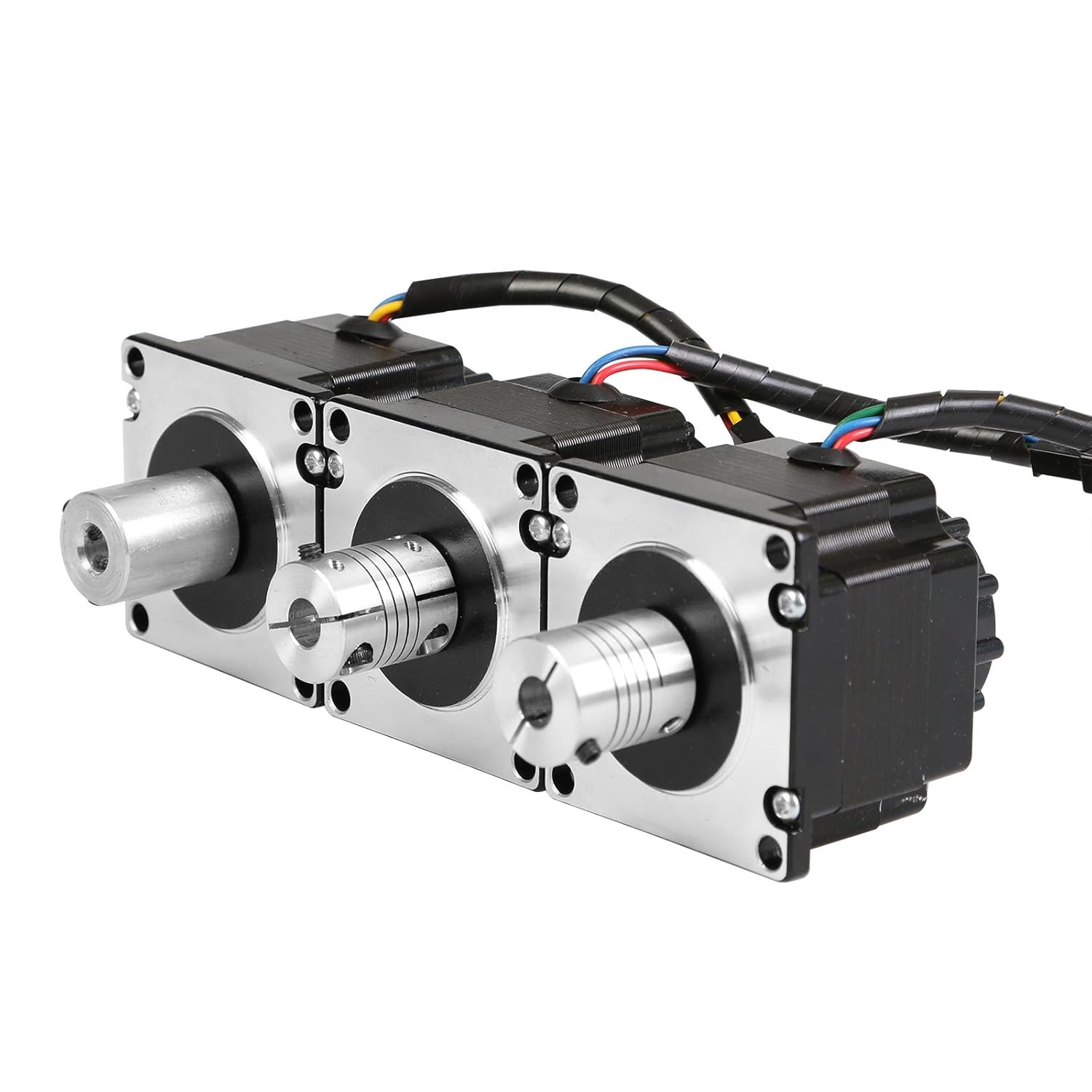

Stepping motor type:57 two-phase 1.8A
Spindle speed:500~8000PRM/Min
Principal axis collet:ER11 /3.175 mm
Repeat accuracy:0.05mm
Spindle precision:radial beat acuities 0.03 mm
Control unit:triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions:G-code/.tab /.nc / .ncc/.txt
Communication interface:through parallel connection with computer
Software environment:Windows 2000 / xp
Maximum speed:0-4000mm/mi
Carving speed:300-2500mm/min

  • Effective working travel : 275(X)*385(Y) * 60(Z)mm.
  • Driving units X Y Zaxis: 1204 trapezoidal screws;Sliding units X Y Zaxis: Dia.16mm 16mm 12mm chrome plate shafts
  • The updated wood engraving machine is equipped with USB Port Can be controlled not only by desktop computer,also suitable for laptop
  • This CNC3040 can engrave much more materials by spiral flute bits, such as metal, steel, MDF board, solid wood, composite board plywood, stone
  • This engraving machine is designed for processing Industrial or hobby prototype building, building model making, PCB, advertising Signs, artwork, crafts, aircraft models, RC model parts, etc.

Link of the CNC machine bought by the company:
https://www.amazon.co.uk/FORAVER-Engraving-Machine-Drilling-Milling/dp/B07GB99WGK/ref=asc_df_B07GB99WGK/?tag=googshopuk-21&linkCode=df0&hvadid=309084212386&hvpos=1o1&hvnetw=g&hvrand=1950440262019027011&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=1007200&hvtargid=pla-741393792615&th=1



Pictures of the Mach3 software and it shows the router image in Gcode






The installing of the mach3
The manual found for the installation of the mach3 software was found by searching online and found that there are instructions in YouTube that shows you how to do the installation of the software

link of YouTube video used for the installation:
https://www.youtube.com/watch?v=Z5za4GxOZHE

Youtube video that tells you how to do the calibration of the Mach3 software:
https://www.youtube.com/watch?v=v5_bzkhU3JQ
